Power Device Analyzers
PDA-604A & PDA-602B
PDA-604A
Overview
PDA-604A is the latest version of PDA analyzers.
The PDA-604A Powered Device Analyzer is a single-box comprehensive solution for testing IEEE 802.3bt and 802.3at PoE Powered Devices
(PD’s). It offers one-button, fully automated test sequences* and limit checking for critical Powered Device PoE characteristics. With measurements performed at the Powered Device network interface, many parameters critical to 802.3at and 802.3bt interoperation can be accurately assessed relative to specification requirements, thus fully avoiding the need for and the severe limitations associated with 802.3at/802.3bt PSE’s
Key features
- Type-1 (≤13W) PD’s
- Type-2 (≤25.5W) PD’s including LLDP Power Negotiation
- Type-3 (≤51W) PD’s
- Type-4 (≤71.3W)
- Emulate 4-Pair and 2-Pair Powering
- Emulate Type-1, 2, 3, and 4 Power Grants to All PD’s
- Real-Time Load Monitoring
- Automatic Static and Transient Load Limit Violation Analysis
- Automated 802.3at* PD Conformance Testing including LLDP
- Configurable Waveform Traces Including Class, Source, Transient Triggering
- 802.3at* LLDP Power Negotiation Protocol Verification
Scale the PDA-604A to your needs!
License options include 802.3bt Type-3/4. 802.3bt Type-3 (51W) and Type-4 (71.3W) PD Powering and Analysis Using 4-Event and 5-Event Classification. 802.3at and 802.3bt conformance test suite. 802.3at and 803.3bt LLDP Protocol Emulation & Testing.
Available modules
- PDA-604A , Base unit with 2-Pair Type-1 and Type-2 PD analysis
- PDA-Type 3/4, License for 802.3bt Type-3 (51W) and Type-4 (71.3W) PD Powering and Analysis Using 4-Event and 5-Event Classification
- PDA-604-CT-AT License for Automated 802.3at PD Conformance Test Suite and Load Monitor applicable to Type-1 (up to 13W) and Type-2 (up to 25.5W) PD’s
- PDA-604-CT-BT License for Automated 802.3bt PD Conformance Test Suite and Load Monitor applicable to Type-3 (up to 51W) and Type-4 (up to 71.3W) PD’s
- PDA-LLDP-AT, License for 802.3at (Type-2) PD Powering and Analysis Using 802.3at LLDP.
- PDA-LLDP-BT, License for 802.3bt (Type-3/4) PD Powering and Analysis Using 802.3bt LLDP
- RACKKIT-PDA, Rack mount kit
- CASE-PDA, Carrying-on Case

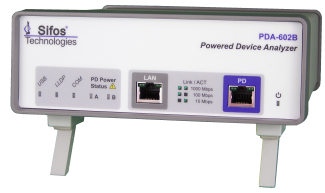

PDA-602B
Overview
PDA-602B Powered Device Analyzer is a single-box comprehensive solution for testing IEEE 802.3at PoE Powered Devices (PD’s). It offers one-button, fully automated test sequences and limit checking for critical Powered Device PoE characteristics. With measurements performed at the Powered Device network interface, many parameters critical to IEEE 802.3at interoperation can be accurately assessed relative to specification requirements, thus fully avoiding the need for and limitations associated with interoperability testing using IEEE 802.3at PSE’s
Key features
- Automated IEEE 802.3at Powered Device Conformance Testing
- Comprehensive Analysis of Critical PD Performance Parameters
- Flexible 802.3at LLDP Emulation and Analysis
- Powerful Metering: Voltage, Current, Power Sampling at PD Interface
- Flexible Emulation of PSE Behaviors and Configurations
- Intuitive Graphical User Interface for Rapid Analysis and Testing
- Powerful Script Automation and Binary API Library for
Microsoft Windows
- 2-Pair Power Sourcing Well Beyond 30W
- Informative Pop-Up Spreadsheet Reports and Statistics
- Plug’n Play USB Interface to Windows PC’s
- Ethernet Switched Thru Port for External PD Configuration and Control
- Detection Signature vs. Voltage Measurement
- Class Signature vs. Voltage Measurement
- Increased Waveform Sampling Rates
Scale the PDA-602B to your needs!
License options include 802.3at Type-2 PD testing, automated conformance test and load monitoring, and 802.3at LLDP Protocol Emulation & Testing.
Available modules
- PDA-602B , Base unit with 2-Pair Type-1 PD analysis
- PDA-Type 2 , Add on software that enables Type-2 PD Analysis
- PDA-CTS, Conformance test suite for automated PD compliance testing
- PDA-LLDP-AT, Add on software that enables 802.3at LLDP testing
- RACKKIT-PDA, Rack mount kit
- CASE-PDA, Carrying-on Case
